PRO COMPLETE 44 | PORTABLE FLOORS

The Pro Complete 44 system consists of 22 mm solid hardwood parquet. The floor boards are preassembled into light weight, hand carried panels. Underneath each floor panel several prefixed birch battens are mounted together with a soft polyurethane foam to provide correct shock absorption and resilience.

The floor panels are easily locked into position by means of pre-mounted metal brackets. Lengthwise the panels have a tongue and groove connection and at ends the panels are joined using loose tongues. A supporting and protecting transition ramp forms a strong edge of the floor perimeter.

Facts

PERFORMANCE

Area-elastic according to EN 14904 class A4

USE

International tournaments, which require special line-markings, concerts and fairs.

FLOORBOARD TYPE

Prefinished 22mm 2-strip solid hardwood parquet

PANEL SIZE

Full panel 0.93 m² - Half panel 0.47 m²

PANEL WEIGHT

Full panel 18,5 kgs - Half panel 9,4 kgs

SUBCONSTRUCTION

Single layer batten system

REQUIRED SUBFLOOR

Flat

CONSTRUCTION HEIGHT

44 mm

JUNCKERS 25 YEARS FATIGUE TEST

SANDING AND RE-SEALING

Yes, to bare wood 8-10 times

SUITABLE FOR UNDERFLOOR HEATING

Yes

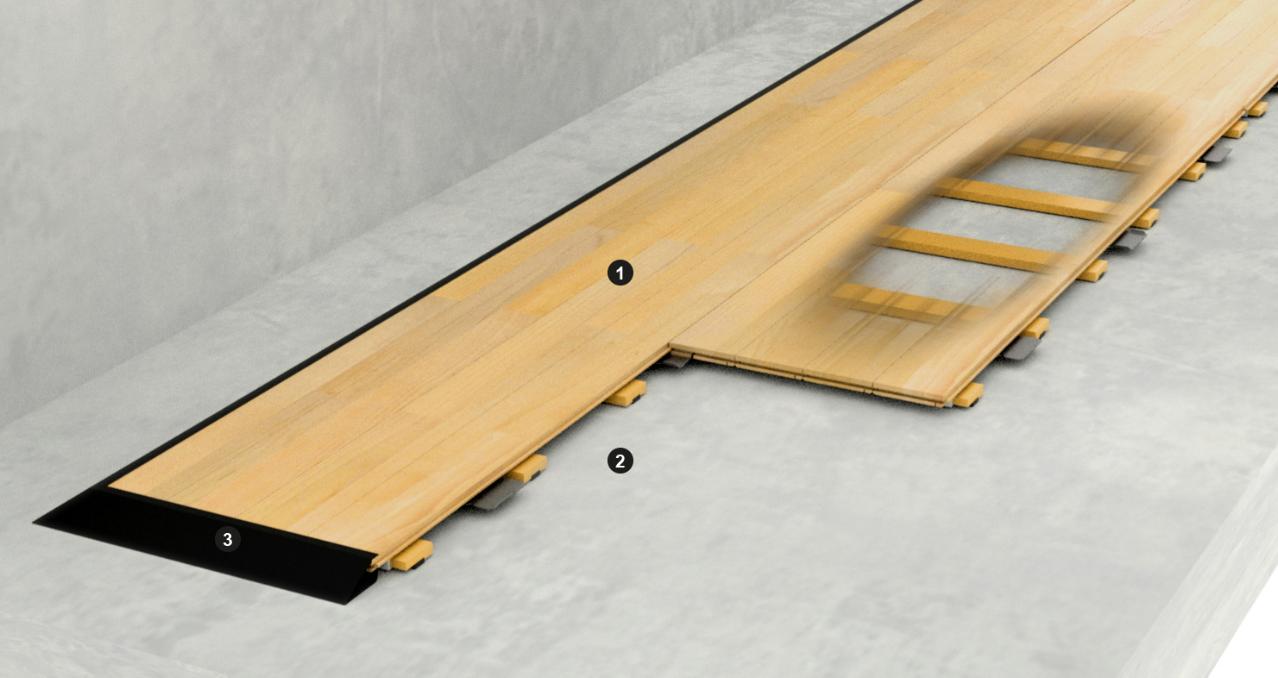

SYSTEM COMPONENTS

1. Floor panels:
    - Full panel: 22 x 517 x 1800mm
    - Half panel: 22 x 517 x 900mm
2. Prefixed battens:
    - 18 x 70 mm engineered birch battens mounted
    with polyurethane foam.
3. Black painted transition ramp





REQUIREMENTS EN 14904:A4

TEST RESULTS

SHOCK ABSORPTION

≥ 55 < 75 %

60 %

VERTICAL DEFORMATION

≥ 2.3 < 5.0 mm

3.3 mm

BALL BOUNCE

≥ 90 %

95 %

FRICTION

≥ 80 ≤ 110

~ 85

ROLLING LOAD



3000 N1

POINT LOAD

≥ 1500 N

5000 N ~ 500 kgs2
1. Junckers test with solid rubber wheels: width 50mm, diameter 100mm.
2. Junckers test with 100x100mm point load.
