ARENA MASTER | PORTABLE FLOORS

The Arena Master Portable Sports Floor is based on 22 mm solid hardwood floorboards, prefabricated into light weight panels.

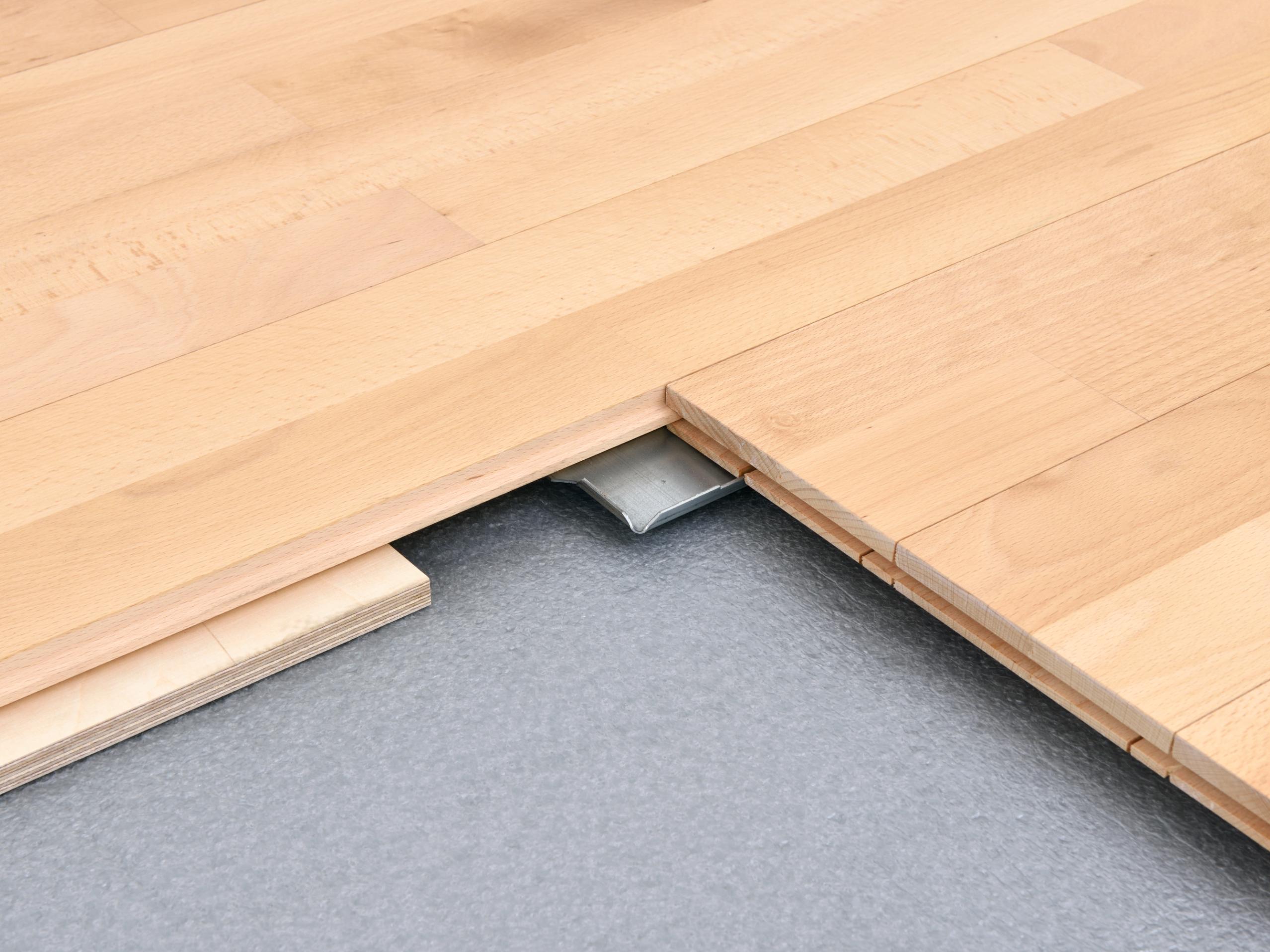

Each floor panel is easily locked into position by means of factory fitted metal brackets. Lengthwise the panels have a tongue and groove connection and at ends the panels are joined using loose tongues.

Underneath each floor panel is fitted four sheets of birch plywood, 12 mm thick. These give the panels a great deal of strength and durability. The panels are reinforced in each end with aluminum profiles. The panels are installed on top of a 15 mm polyethylene foam layer to provide the correct amount of shock absorption and resilience.

A transition ramp around the floor provides a strong, protective and firm edge to the perimeter.

For faster and more flexible installation ask for Junckers CenterRow Panels that makes two way installation possible.

Arena Master tolerates larger fluctuations in relative humidity and is therefore suitable for long term use.

Facts

PERFORMANCE

Area-elastic according to EN 14904 class A3

USE

International tournaments, which require special line-markings,
concerts and fairs.
On top of turf surfaces and ice rinks

FLOORBOARD TYPE

Prefinished 22mm 2-strip solid hardwood parquet

PANEL SIZE

Full panel 0.93 m² - Half panel 0.47 m²

PANEL WEIGHT

Full panel 19.7 kgs - Half panel 9.9 kgs

SUBCONSTRUCTION

Prefixed birch plywood, 12 mm

UNDERLAY

15 mm Sports Foam

REQUIRED SUBFLOOR

Self-supporting subfloor of concrete/lightweight concrete
Existing hard floors
Soft surfaces / point elastic floors like rubber or vinyl

CONSTRUCTION HEIGHT

49 mm / 34 mm on turf

JUNCKERS 25 YEARS FATIGUE TEST

✔

SANDING AND RE-SEALING

Yes, to bare wood 8-10 times

SUITABLE FOR UNDERFLOOR HEATING

 Yes

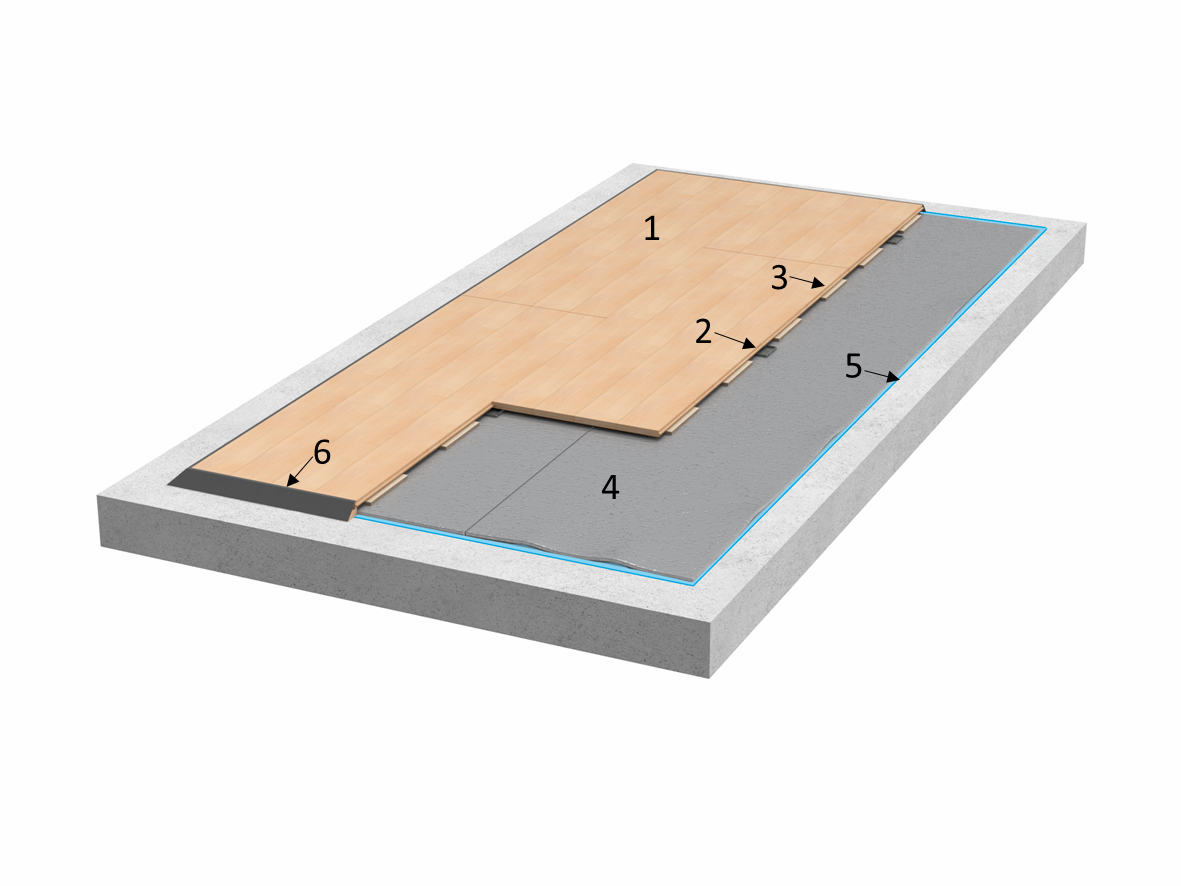

SYSTEM COMPONENTS

  1. Junckers 22 mm solid 2-strip floor panels.
    Full size panel: 517.5 x 1800 mm, 0.93 m²
    Half size panel: 517.5 x 900 mm, 0.47 m²
  2. Assembly brackets
  3. Plywood
  4. Resilient underlay, Junckers 15 mm Sports Foam
  5. Moisture barrier on concrete, Junckers 0.20 mm PE membrane
  6. Transition ramp





REQUIREMENTS EN 14904:A3

TEST RESULTS

SHOCK ABSORPTION

≥ 40 < 55 %

50 %

VERTICAL DEFORMATION

≥1.8 <3.5mm

2.1 mm

BALL BOUNCE

≥ 90 %

98 %

FRICTION

≥ 80 ≤ 110

~ 85

ROLLING LOAD

≥ 1500 N

 3000 N1

POINT LOAD

None

5000 N ~ 500 kgs2
  1. Junckers test with solid rubber wheels: width 50mm, diameter 100mm.
  2. Junckers test with 100x100mm point load.
